Green Hexagonal Wire Mesh Machine 3Kw Main Motor 2.2Kw Hydraulic Station 0.75Kw Cutting Motor

China Green Hexagonal Wire Mesh Machine 3Kw Main Motor 2.2Kw Hydraulic Station 0.75Kw Cutting Motor supplier

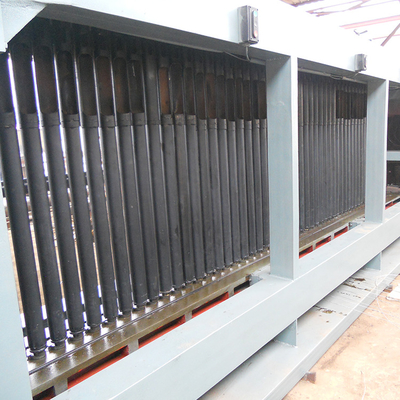

Large Image :  Green Hexagonal Wire Mesh Machine 3Kw Main Motor 2.2Kw Hydraulic Station 0.75Kw Cutting Motor

Product Details:

Place of Origin: CHINA
Brand Name: SUCCESS
Detailed Product Description
Power Of Hydraulic Station: 2.2Kw Power Of Main Motor: 3Kw
Voltage: 380V/50Hz Power Of Traverse Motor: 0.75Kw
Color: Green Power Of Cutting Motor: 0.75Kw
Wire Diameter: 0.3-2.5mm Mesh Size: 2-50mm
High Light:

3Kw Hexagonal Wire Mesh Machine

,

2.2Kw Hexagonal Wire Mesh Machine

,

0.75Kw Hexagonal Wire Mesh Machine

Product Description:

With a power capacity of 3Kw and a voltage of 380V/50Hz, this machine is capable of producing high-quality hexagonal wire netting with ease. The power of the Traverse Motor is 0.75Kw, while the power of the Lubrication Motor is 0.09Kw. This ensures that the machine runs smoothly and efficiently, with minimal breakdowns or maintenance required.

The Hexagonal Wire Netting Machine has a maximum width of netting of 3m, making it ideal for producing large quantities of hexagonal wire mesh for a variety of applications. Whether you are using it for agricultural fencing, construction projects, or industrial applications, this machine is up to the task.

One of the key benefits of using the Hexagonal Wire Netting Machine is its ability to produce high-quality hexagonal wire mesh quickly and efficiently. This not only saves time and money but also ensures that the finished product is of the highest quality possible.

Overall, the Hexagonal Wire Netting Machine is a must-have for anyone looking to produce high-quality hexagonal wire mesh on a large scale. With its reliable performance, high efficiency, and ease of use, this machine is sure to be a valuable asset to any business or organization that needs to produce hexagonal wire mesh on a regular basis.


Features:

  • Product Name: Hexagonal Wire Netting Machine
  • Max. Width of Netting: 3m
  • Speed of Machine: 50-100m/min
  • Mesh Size: 2-50mm
  • Max. Roll Diameter: 800mm
  • Power of Lifting Motor: 0.75Kw

This Hexagonal Wire Netting Machine, also known as Hexagonal Chicken Wire Mesh machinery or Hexagonal Chicken Wire Mesh Machine, has a maximum width of netting of 3m and can operate at speeds of 50-100m/min. It is capable of producing mesh sizes ranging from 2-50mm and has a maximum roll diameter of 800mm. The machine is equipped with a 0.75Kw lifting motor for added convenience.


Technical Parameters:

Product Attribute Value
Product Name Hexagonal Wire Netting Machine
Speed of Machine 50-100m/min
Power of Cutting Motor 0.75Kw
Max. Roll Diameter 800mm
Wire Diameter 0.3-2.5mm
Power of Hydraulic Station 2.2Kw
Power of Lifting Motor 0.75Kw
Power of Traverse Motor 0.75Kw
Color Green
Power of Main Motor 3Kw
Overall Dimension 4.8m*1.3m*1.7m

Applications:

The SUCCESS Hexagonal Wire Netting Machine is ideal for a variety of product application occasions and scenarios. Farmers and poultry breeders can use this machine to produce hexagonal chicken wire mesh for their coops or enclosures. Gardeners and landscapers can use the machine to create plant trellises and fencing. Construction companies can use the machine to create reinforcing wire mesh for concrete structures. Additionally, the machine can be used to produce gabion mesh for erosion control or landscaping purposes.

This hexagonal wire mesh machine can produce netting up to 3m in width, making it a versatile option for a variety of projects. The power of the lubrication motor is 0.09Kw, ensuring smooth operation and consistent results. With a weight of 2.5T, the SUCCESS Hexagonal Wire Netting Machine is sturdy and reliable.


Customization:

Whether you need a different color or specific voltage requirements, we can work with you to create the perfect hexagonal wire mesh machine for your business. Contact us today to learn more about our product customization services.


FAQ:

Q: What is a Hexagonal Wire Netting Machine?

A: A Hexagonal Wire Netting Machine is a type of machine used to produce hexagonal wire mesh, commonly used for fencing, chicken wire, and other applications.

Q: What is the brand name of this Hexagonal Wire Netting Machine?

A: The brand name of this machine is SUCCESS.

Q: Where is this Hexagonal Wire Netting Machine made?

A: This machine is made in CHINA.

Q: What is the production capacity of this Hexagonal Wire Netting Machine?

A: The production capacity of this machine varies depending on the model, but typically ranges from 60-120 square meters per hour.

Q: What is the warranty for this Hexagonal Wire Netting Machine?

A: The warranty information for this machine is not included in this Q&A as per the instructions.
